Learn ArcGIS Story Maps / Hosting an Un-Customized Story Map

In this hosting scenario, you might be a web administrator who wants to host the Story Map on your own server in order to have a custom URL and the ability to collect usage statistics. You are not looking to make any changes to the original Story Map.

You will not need to alter the app code beyond some edits to the index.html file.

The following steps assume you have already built a Story Map on ArcGIS Online.

  1. Download the compiled code for the app you used to build the story
    a. Navigate to the Story Maps Apps page.
    b. Find the app you used to build the story. In this example, we used the Tabbed Layout app. Click on Overview:

Uncustomized 1

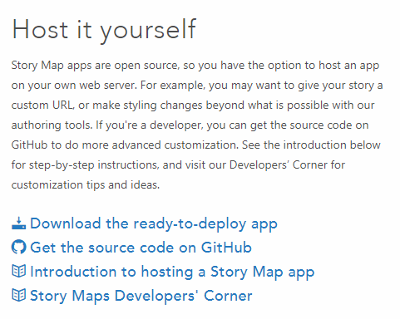

c. Navigate to the "Host it yourself" section at the bottom of the page. Click "Download the ready-to-deploy app":

Uncustomized 2
This is the compiled code that was discussed in the previous section.
d. The code will be downloaded to your Downloads folder as a zip file with the following name:
storymap-series-1.10.1
2. Extract the zipped files and then open index.html with a text editor like Notepad++. The page will look like the following:

Uncustomized 3
3. Scroll to line 40. You should see the following text:
appid: "",
4. Insert the Story Map ID between the quotation marks:
appid: "5664b970f6154193a1dab3b5d4f27336",
5. Save the index.html file and close it.
6. Deploy index.html to your web server.

If you do not currently have a web server in which to deploy the app, you can follow these steps to setup a local host server to view how the Story Map will look. This assumes the user is using Google Chrome as their web browser.

  1. Open a new tab in Chrome and select "Apps" in the upper lefthand corner of the screen.
  2. Select "Web Store" and search for an app titled "Web Server for Chrome". It should have a yellow circle icon that says "200 OK!". Download the app.
  3. Open a new tab, click on "Apps" and the Web Server app should appear. Click on the app.
  4. Click on the "CHOOSE FOLDER" button. Navigate to the folder that contains the index.html file.
  5. Click on the available Web Server URL (http://127.0.0.1:8887).
  6. A new web page will open with the title "Index of current directory..." Click on index.html. The Story Map should now be visible.

You can optionally edit the index.html file to make some other changes:

  • Add a web analytics code snippet and key to collect usage statistics about your Story Map. Find more information here.

  • Add info to the tags to control how your Story Map looks when it's shared on social networking sites. Find more information here.

Perhaps need some discussion here about what to do next. Take the compiled code folder that was downloaded and put it into a GitHub repository??

Next Steps

The next step is to host our previously created Story Map on our own server after making some style changes to the Story Map.
